The M7097 Cache
This is 8K of associative cache memory for the 11/44.

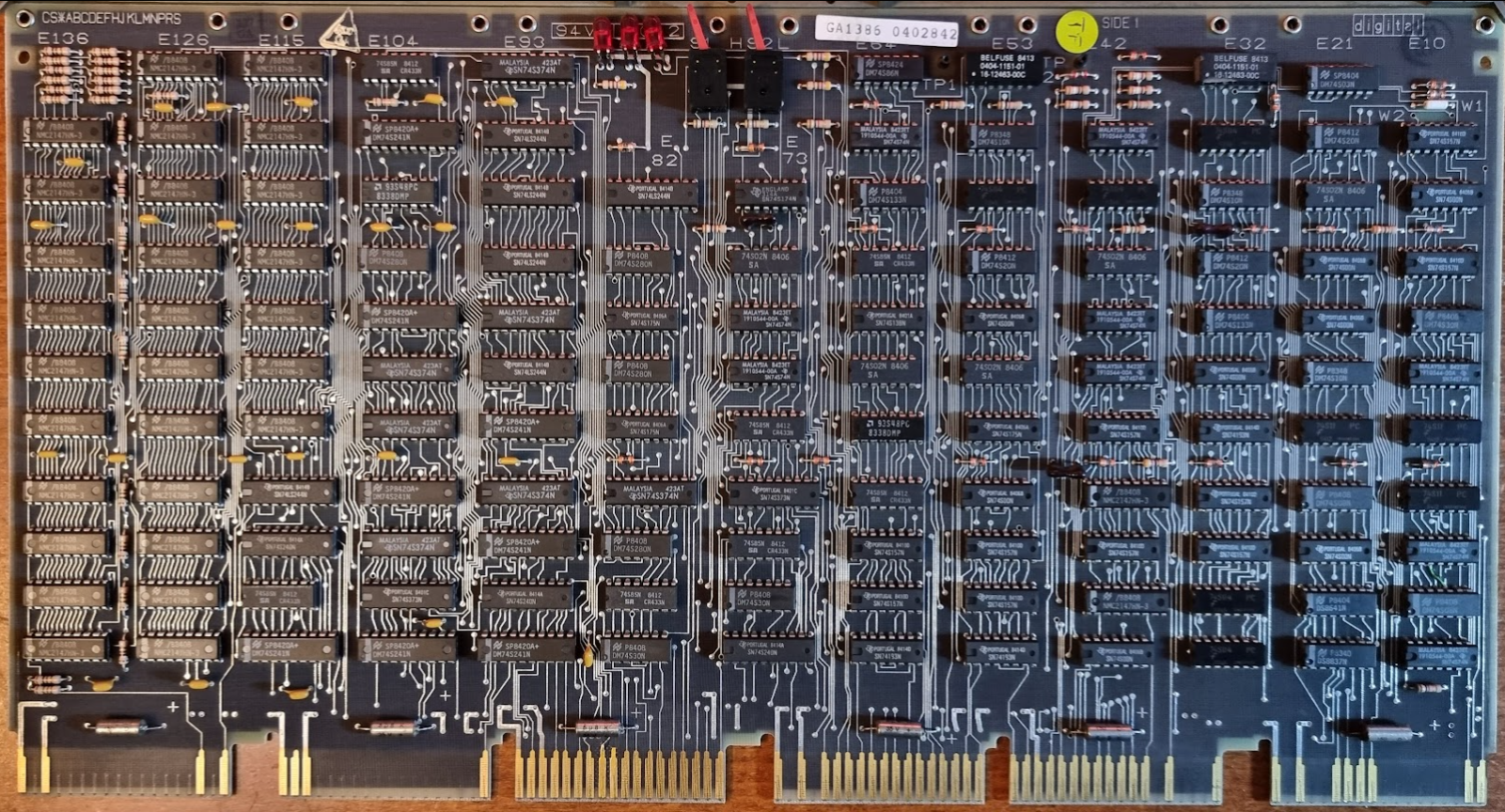

The M7097 component side, filled with the MMC2147 static RAMs that make up the 8K of cache.
