The M7095 Control module

This contains the instruction decoder and the microcode engine. It has a lot of proms which contain both mappings for the instruction set decoder but also the microprograms to execute the instructions.

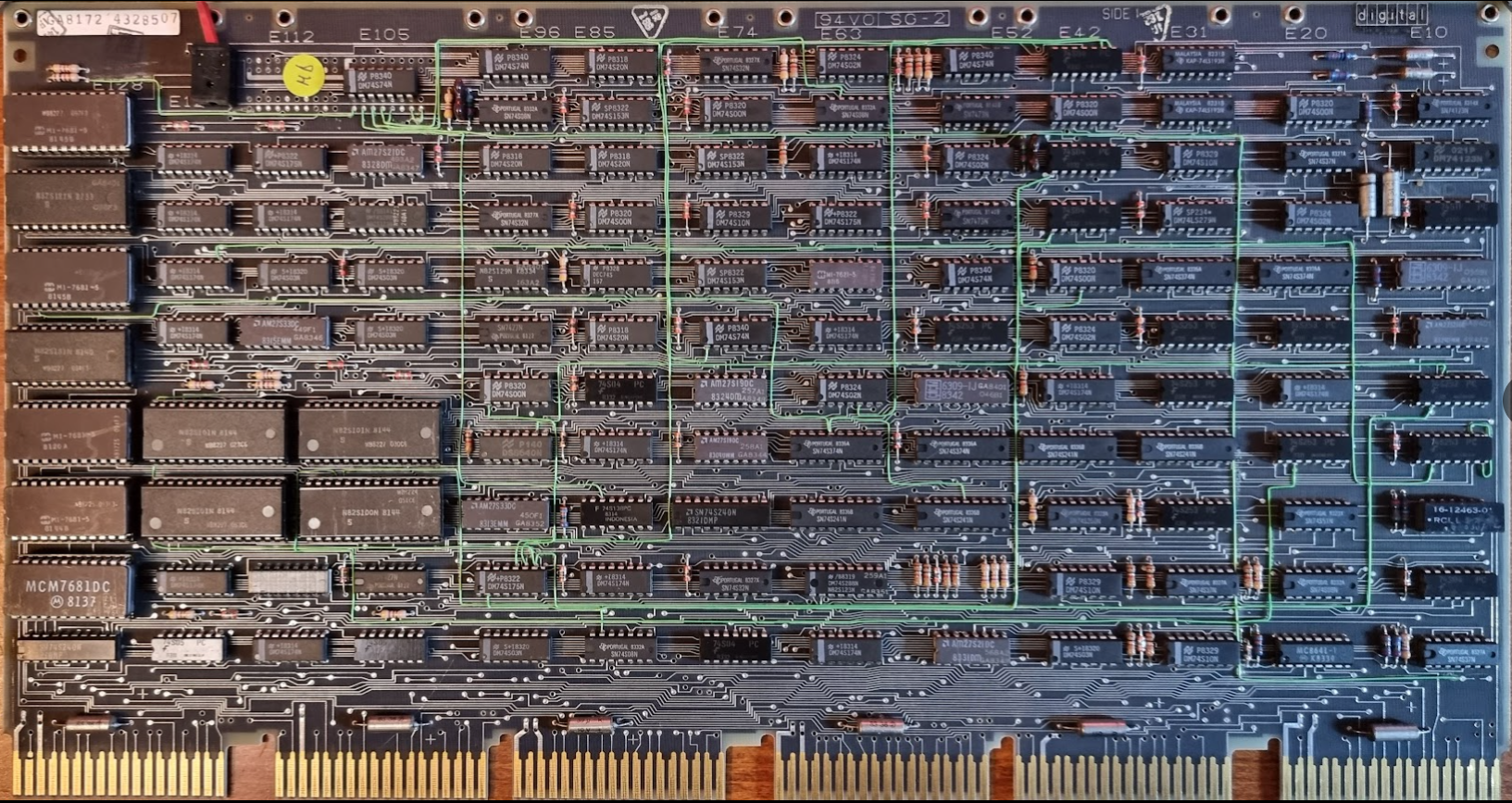

The M7095 component side. The microcode and decode PROMs are the large ceramic packages down the left edge.
The M7095 component side. The microcode and decode PROMs are the large ceramic packages down the left edge.
