The M7093 FP11 Floating Point processor

This optional board implements floating point instructions. It is an impressive board with 16x AM2901 bit slice ALUs.

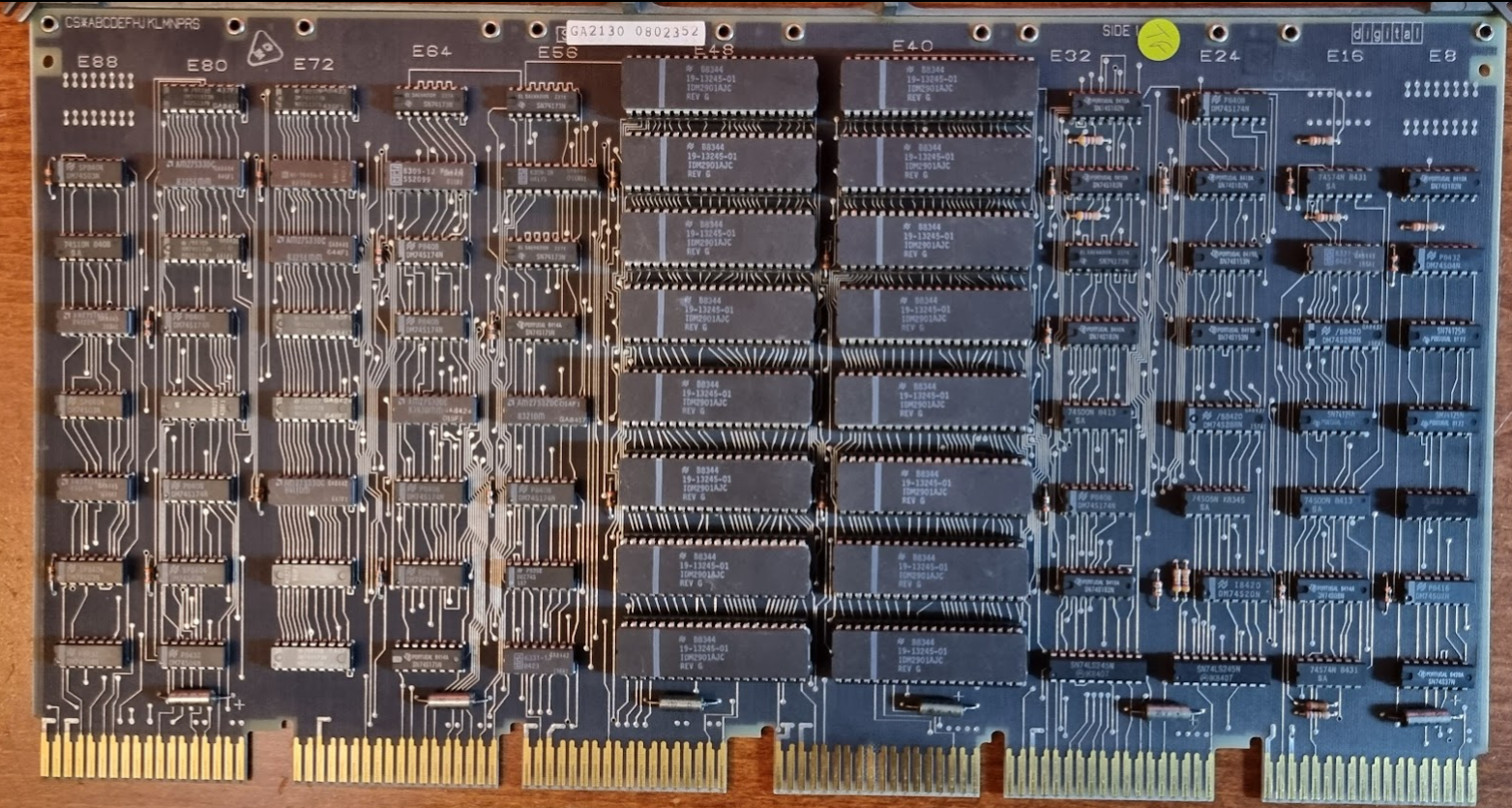

The M7093 component side. The sixteen IDM2901AJC bit slices fill the two columns in the middle of the board.
