The M7096 Multi-function module

The M7096 Multi-function module

This forms the console interface, replacing the blinkenlight consoles of yesteryear. It uses a 8085 processor (the white chip top left) which talks with a terminal through one of two UARTs (the other is the TU58 interface). The 8085 is able to control the 11/44 main processor to implement things like the Examine and Deposit commands, and it can microstep the processor.

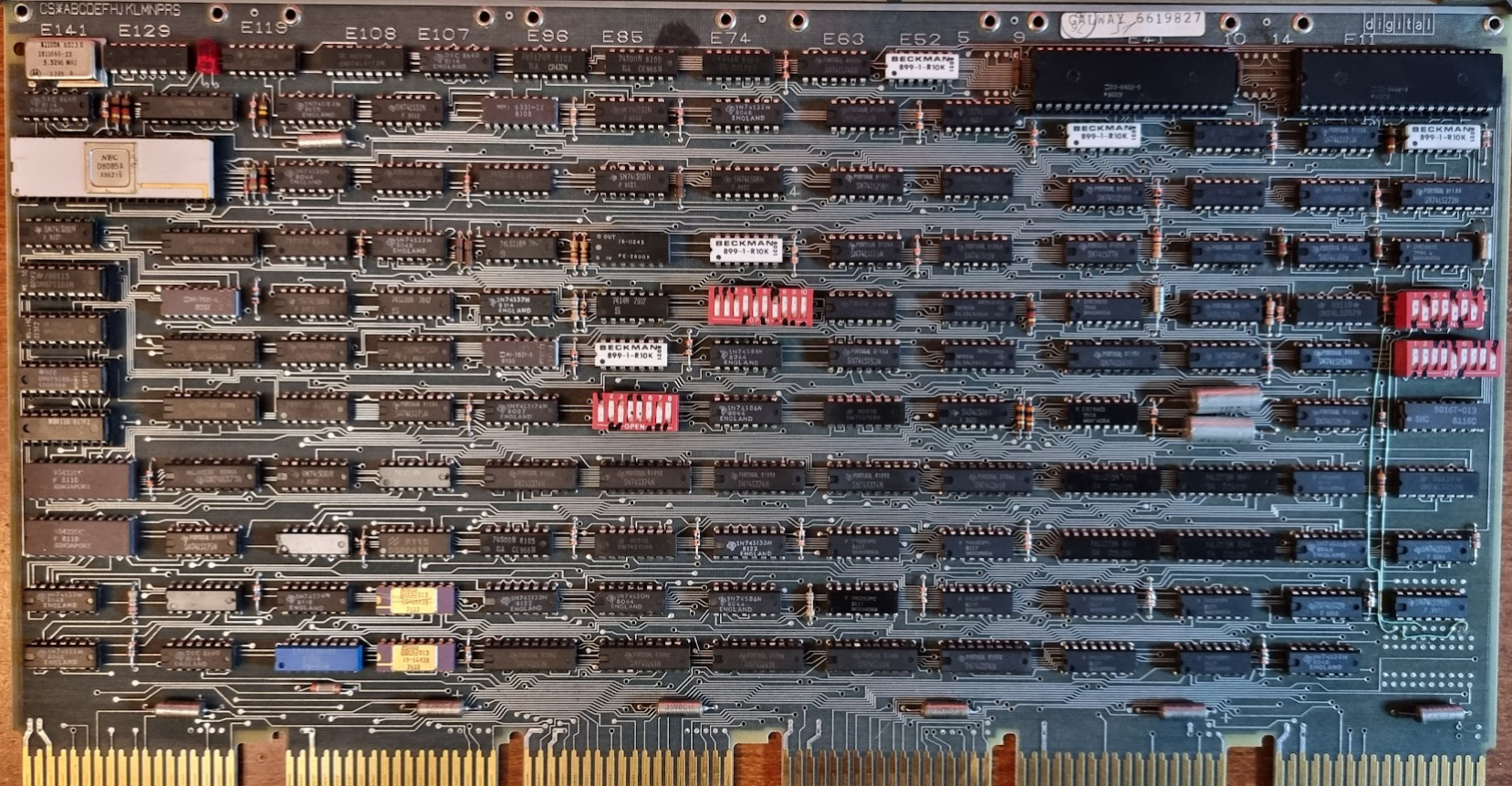

The M7096 component side. The white ceramic D8085A sits at the top left, with the configuration DIP switches in red across the middle.
The M7096 component side. The white ceramic D8085A sits at the top left, with the configuration DIP switches in red across the middle.
