rl02 Initial tests

First thing is to run some tests. I used the Unibone test setup. As most Unibone xxdp scripts actually use an emulated RL02 I had to use another thing to boot from. I chose to use the rx02 emulation, and one of the rx02 images from here. More details see here.

The results of the 1st run:

CPU NOT SUPPORTED BY XXDP-XM

BOOTING UP XXDP-SM SMALL MONITOR

XXDP-SM SMALL MONITOR - XXDP V2.6
REVISION: E0
BOOTED FROM DY0
28KW OF MEMORY
UNIBUS SYSTEM

RESTART ADDRESS: 152010
TYPE "H" FOR HELP

.R ZRLG??
ZRLGE0.BIC

DRSSM-G2
CZRLG-E-0
CZRLG TESTS CONTROLLER FUNCTIONS, INTERFACE LOGIC, REGISTER OPERATION
UNIT IS RL01,RL02
RSTRT ADR 145702
DR>STA/FLAGS:HOE

CHANGE HW (L)  ?

NO DEFAULT
CHANGE HW (L)  ? Y

# UNITS (D)  ? 1

UNIT 0
RL11=1, RLV11=2, RLV12=3 (O)  ? 1
BUS ADDRESS (O)  174400 ?
VECTOR (O)  160 ?
DRIVE (O)  0 ?
DRIVE TYPE = RL01 (L) Y ? N
BR LEVEL (O)  5 ?

CHANGE SW (L)  ?

NO DEFAULT
CHANGE SW (L)  ? Y

DROP ON ERROR LIMIT (L) N ?

CZRLG DVC FTL ERR  00300 ON UNIT 00 TST 025 SUB 000 PC: 015454

CONTROLLER: 174400  DRIVE: 0
RLCS CONTAINED FOLLOWING ERROR(S):
 COMP OPI
GET STATUS OPERATION-FLAG MODE
BEFORE COMMAND: CS: 000204 BA: 002416 DA: 000013 MP: 005100
TIME OF ERROR:  CS: 102204 BA: 002416 DA: 000013 MP: 005100?

ERR HLT
DR>

Apparently this is error 300 of subtest 025 at pc=015454. Looking up the fiche in the fiche database on retrocmp.com:

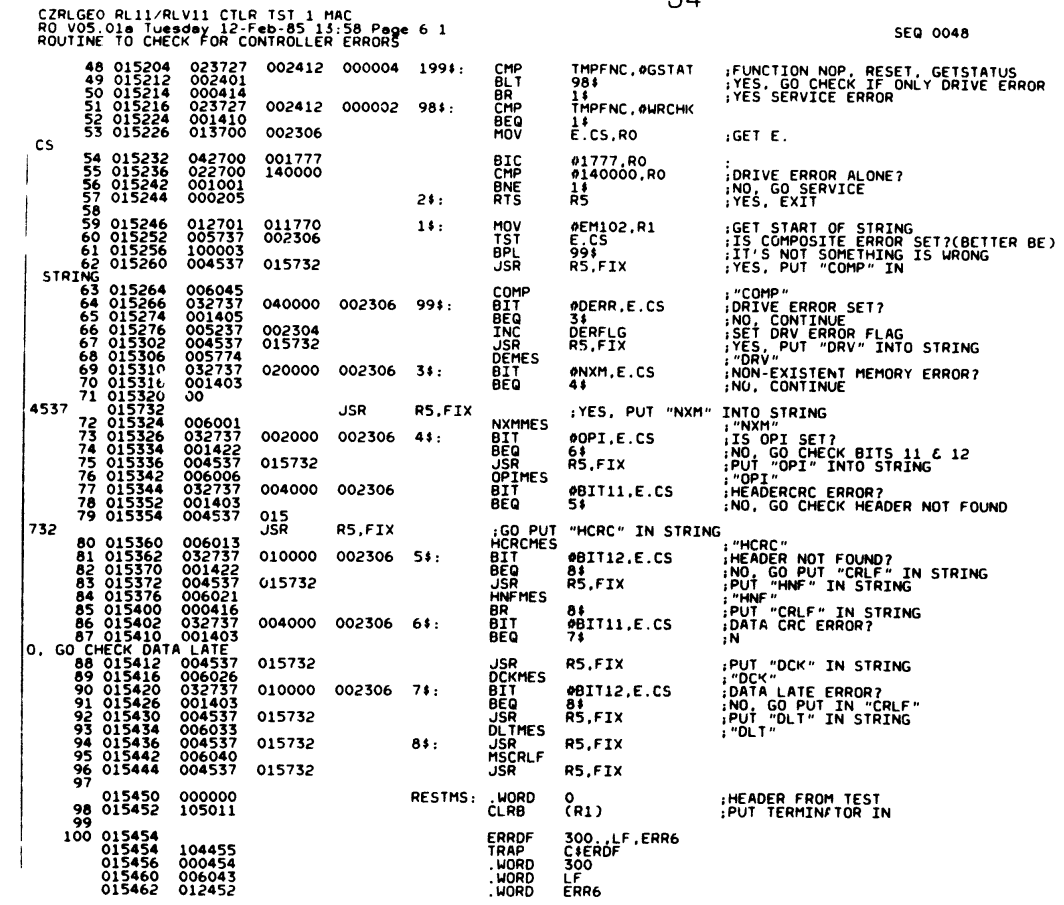

The controller error routine from the fiche. It walks the CS bits in turn and appends COMP, DRV, NXM, OPI, HCRC, HNF, DCK or DLT to the message, ending in the ERRDF 300 that was reported.

From that we learn that we have a "composite error", and "OPI" is set. OPI means:

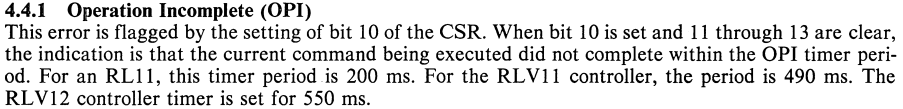

Section 4.4.1: OPI is bit 10 of the CSR, and means the command did not finish inside the timer period, which is 200ms on an RL11.

The failing test is test#25. That reads as follows:

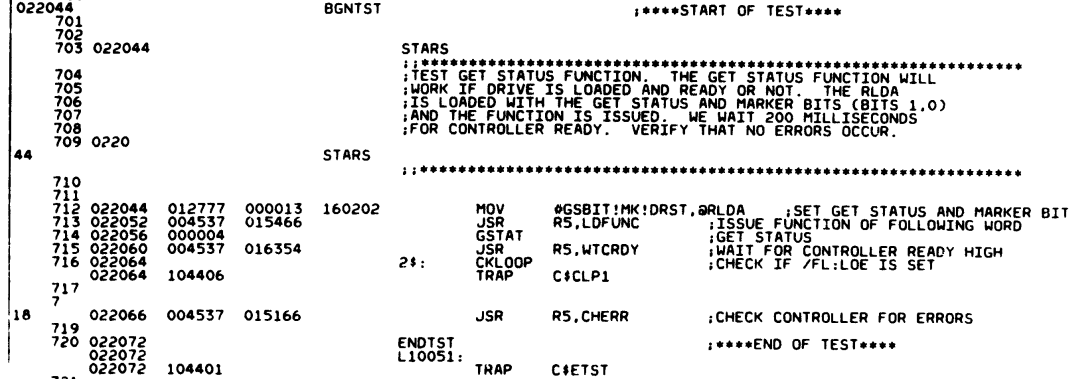

Test 25 sets the get status and marker bits in the RLDA, issues the function and waits 200ms for controller ready. It should work whether or not a drive is loaded.

Second try

I found out that something was off with supplying power to the RL11 controller so I fixed that and restarted the tests with a drive running. This resulted in:

.R ZRLG??
ZRLGE0.BIC

DRSSM-G2
CZRLG-E-0
CZRLG TESTS CONTROLLER FUNCTIONS, INTERFACE LOGIC, REGISTER OPERATION
UNIT IS RL01,RL02
RSTRT ADR 145702
DR>STA/FLAGS:HOE

CHANGE HW (L)  ? Y

# UNITS (D)  ? 1

UNIT 0
RL11=1, RLV11=2, RLV12=3 (O)  ? 1
BUS ADDRESS (O)  174400 ?
VECTOR (O)  160 ?
DRIVE (O)  0 ?
DRIVE TYPE = RL01 (L) Y ? N
BR LEVEL (O)  5 ?

CHANGE SW (L)  ? N

CZRLG DVC FTL ERR  00029 ON UNIT 00 TST 027 SUB 000 PC: 022322
OPI DID NOT SET-GSTAT WITHOUT GS BIT
CONTROLLER: 174400  DRIVE: 0
BEFORE COMMAND: CS: 000205 BA: 002416 DA: 000001 MP: 000235
TIME OF ERROR:  CS: 000205 BA: 002416 DA: 000001 MP: 000235?
ERR HLT
DR>

Looking at test 27:

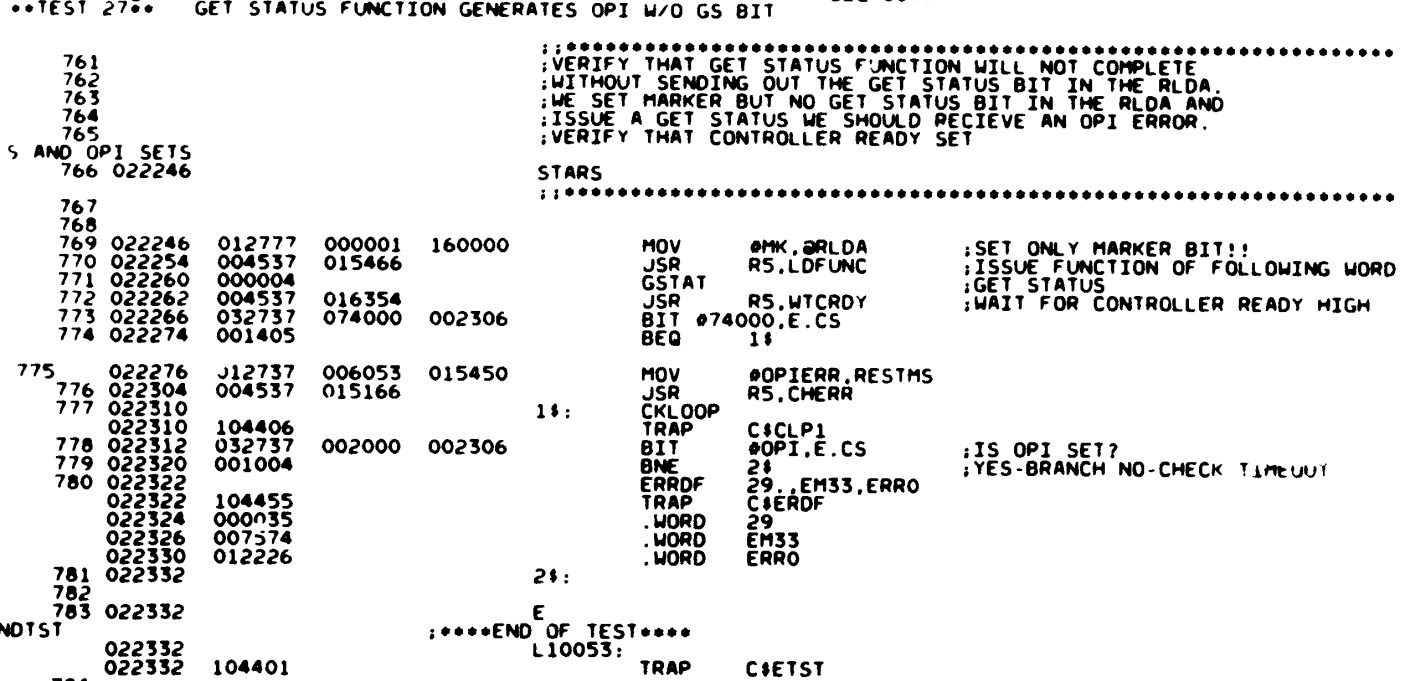

Test 27 sets the marker bit but deliberately leaves the get status bit out, and expects the controller to answer with an OPI error. It is the first test that actually talks to the drive.

This seems to be the first test that actually talks with the disk drive- and it is not answering..
