Backplanes - detailed slot descriptions

Notes: DD11 Unibus Backplane

Unibus Backplanes

Type	Slots	Description
DD11-A	4	The end slots are Unibus in rows A and B, one of the middle sp;slots, row A is for the power connection. Rows C to F are SPC.
DD11-B	4	The end slots are Unibus in rows A and B, the middle slots, rows A and B are for DF11. Rows C to F are SPC. Power connection is via a harness and faston tabs.
DD11-CF	4	The end slots are Unibus in rows A and B, the middle slots, rows A and B are MUD (?). Rows C to F are SPC. Power connection is via a soldered harness for a BA11-F mounting box.
DD11-CK	4	The end slots are Unibus in rows A and B, the middle slots, rows A and B are MUD (?). Rows C to F are SPC. Power connection is via a soldered harness for a BA11-K mounting box.
DD11-DF	9	The end slots are Unibus in rows A and B, the middle slots, rows A and B are MUD (?). Rows C to F are SPC. Power connection is via a soldered harness for a BA11-F mounting box.
DD11-DK	9	The end slots are Unibus in rows A and B, the middle slots, rows A and B are MUD (?). Rows C to F are SPC. Power connection is via a soldered harness for a BA11-K mounting box.

Detailed Slot Descriptions

Backplanes viewed from the wiring side.

DD11-A


	A	B	C	D	E	F
4	UNIBUS		SPC
3	Power	unused	SPC
2	unavailable	unused	SPC
1	UNIBUS		SPC

DD11-B


	A	B	C	D	E	F
4	UNIBUS		SPC
3	DF11		SPC
2	DF11		SPC
1	UNIBUS		SPC

DD11-C


	A	B	C	D	E	F
4	UNIBUS		SPC
3	Modified UNIBUS		SPC
2	Modified UNIBUS		SPC
1	UNIBUS		SPC

DD11-D


	A	B	C	D	E	F
9	UNIBUS		SPC
8	Modified UNIBUS		SPC
7	Modified UNIBUS		SPC
6	Modified UNIBUS		SPC
5	Modified UNIBUS		SPC
4	Modified UNIBUS		SPC
3	Modified UNIBUS		SPC
2	Modified UNIBUS		SPC
1	UNIBUS		SPC

UNIBUS Pin Designations


	Row A		Row B
	1	2	1	2
A	INIT L	+5V	BG6 H	+5V
B	INTR L	GND	BG5 H	GND
C	D00 L	GND	BR5 L	GND
D	D02 L	D01 L	GND	BR4 L
E	D04 L	D03 L	GND	BG4 H
F	D06 L	D05 L	AC LO L	DC LO L
H	D08 L	D07 L	A01 L	A00 L
J	D10 L	D09 L	A03 L	A02 L
K	D12 L	D11 L	A05 L	A04 L
L	D14 L	D13 L	A07 L	A06 L
M	PA L	D15 L	A09 L	A08 L
N	GND	PB L	A11 L	A10 L
P	GND	BBSY L	A13 L	A12 L
R	GND	SACK L	A15 L	A14 L
S	GND	NPR L	A17 L	A16 L
T	GND	BR7 L	GND	C1 L
U	NPG H	BR6 L	SSYN L	C0 L
V	BG7 SO	GND	MSYN L	GND

Modified UNIBUS Pin Designations


	Row A		Row B
	1	2	1	2
A	INIT L	+5V	RESV	+5V
B	INTR L	GND	RESV	TP
C	D00 L	GND	BR5 L	GND
D	D02 L	D01 L	+5 BAT	BR4 L
E	D04 L	D03 L	INT SSYN	PAR DET
F	D06 L	D05 L	AC LO L	DC LO L
H	D08 L	D07 L	A01 L	A00 L
J	D10 L	D09 L	A03 L	A02 L
K	D12 L	D11 L	A05 L	A04 L
L	D14 L	D13 L	A07 L	A06 L
M	PA L	D15 L	A09 L	A08 L
N	PAR P1	PB L	A11 L	A10 L
P	PAR P0	BBSY L	A13 L	A12 L
R	+15 BAT	SACK L	A15 L	A14 L
S	-15 BAT	NPR L	A17 L	A16 L
T	GND	BR7 L	GND	C1 L
U	+20 CORE	BR6 L	SSYN L	C0 L
V	+20 CORE	+20 CORE	MSYN L	-5 CORE

Unibus / Modified unibus difference


	Row A				Row B
	1UB	1MUD	2UB	2MUD	1UB	1MUD	2UB	2MUD
A	INIT L		+5V		BG6 H	RESV	+5V
B	INTR L		GND		BG5 H	RESV	GND	TP
C	D00 L		GND		BR5 L		GND
D	D02 L		D01 L		GND	+5V BAT	BR4 L
E	D04 L		D03 L		GND	INT SSYN	BG4 H	PAR DET
F	D06 L		D05 L		AC LO L		DC LO L
H	D08 L		D07 L		A01 L		A00 L
J	D10 L		D09 L		A03 L		A02 L
K	D12 L		D11 L		A05 L		A04 L
L	D14 L		D13 L		A07 L		A06 L
M	PA L		D15 L		A09 L		A08 L
N	GND	PAR P1	PB L		A11 L		A10 L
P	GND	PAR P0	BBSY L		A13 L		A12 L
R	GND	+15V BAT	SACK L		A15 L		A14 L
S	GND	-15V BAT	NPR L		A17 L		A16 L
T	GND		BR7 L		GND		C1 L
U	NPG H	+20 CORE	BR6 L		SSYN L		C0 L
V	BG7 SO	+20 CORE	GND	+20 CORE	MSYN L		GND	-5V CORE

SPC Pin Designations


	Row C		Row D		Row E		Row F
	1	2	1	2	1	2	1	2
A	NPG IN	+5V	TP	+5V	GND	+5V	ABG OUT	+5V
B	NPG OUT	-15V	TP	-15V	ASSYN IN H	-15V	ABG IN	-15V
C	PA L	GND	A SEL 6	GND	A12 L	GND	SSYN L	GND
D	LTC	D15 L	A OUT L	BR7 L	A17 L	A15 L	BBSY L	F01 N1
E	TP	D14 L	A SEL 4	BR6 L	MSYN L	A16 L	F01 V2	D02 L
F	TP	D13 L	A SEL 0	BR5 L	A02 L	C1 L	D05 L	D06 L
H	D11 L	D12 L	A IN	BR4 L	A01 L	A00 L	D07 L	A INT ENBB
J	A INT B	D10 L	A SEL 4	A BR OUT	SSYN L	C0 L	NPR L	GND A
K	TP	D09 L	A OUT	BG7 SO	A14 L	A13 L	D08 L	A INT B
L	A INT ENBB	D08 L	INIT L	BG7 OUT	A11 L	TP	D03 L	F01 L2
M	TP	D07 L	A INT ENBA	BG6 SO	A IN	A OUT H	INTR L	F01 M2
N	DC LO	D04 L	A INT A	BG6 OUT	A OUT L	A08 L	F01 N1	D04 L
P	HALT REQ	D05 L	TP	BG5 SO	A10 L	A07 L	ABR OUT	F01 P2
R	HALT GRT	D01 L	TP	BG5 OUT	A09 L	A SEL 4	F01 L2	F01 N1
S	PB L	D00 L	TP	BG4 SO	A SEL 6	A SEL 0	F01 M2	F01 P2
T	GND	D03 L	GND	BG4 OUT	GND	A SEL 2	GND	SACK L
U	+15/+8	D02 L	TP	ABG IN	A06 L	A04 L	A INT A	ABR OUT
V	AC LO	D06 L	ASSYN IN H	ABG OUT	A05 L	A03 L	A INT ENBA	F01 F01

11/40 Power Distribution Panel

Connector: AMP 9 pin MATE-N-LOC™


Pin	AWG	Color	Function	Slot Pins
1	18	violet	DCLO	BF2, CN1
2	18	yellow	ACLO	BF1
3	18	blue	-15V	CB2, CC2, CD2, CE2
4	14	black	GND
5	14	black	GND
6			n/c
7	18	brown	LTC	CD1
8	14	grey	+15V	CU1
9	14	red	+5V	AA2, BA2, CA2, DA2, EA2, FA2

DD11-DK Power Connections

P2 Connector: AMP 15 pin MATE-N-LOC™ (Also on DD11-CK)


Pin	AWG	Color	Function	Slot Pins
1	14	red	+5V	AA2, BA2, CA2, DA2, EA2, FA2
2	18	grey	+15V	CU1
3	14	orange	+20V core	AU1, AV1, AV2
4	14	red	+5V	AA2, BA2
5
6
7
8	14	black	GND
9	14	black	GND
10
11
12	14	red	+5VB	BD1
13
14	18	brown	-5V core	BV2
15

P3 Connector: AMP 6 pin MATE-N-LOC™ (Also on DD11-CK)


Pin	AWG	Color	Function	Slot Pins
1	14	black	GND
2	18	brown	LTC	CD1
3	18	violet	DCLO	BF2, CN1
4	18	yellow	ACLO	BF1
5
6

P4 Connector: AMP 15 pin MATE-N-LOC™ (Not available on DD11-CK)


Pin	AWG	Color	Function	Slot Pins
1	14	red	+5V	AA2, BA2, CA2, DA2, EA2, FA2
2
3	14	orange	+20V core	AU1, AV1, AV2
4	14	red	+5V	AA2, BA2, CA2, DA2, EA2, FA2
5
6	18	white	+15VB	AR1
7
8	14	black	GND
9	14	black	GND
10
11
12
13	18	blue	-15V	CB2, CC2, CD2, CE2
14
15	18	green	-15VB	AS1

Original here

Power supply connectors

These connectors are all “MATE-N-LOK” connectors from TE Connectivity. This connector family consists of housings and pins sold separately in different form factors and pin sizes. Some parts can be obtained from conrad.nl; search for MATE-N-LOK.

I got the following to work with the connectors:

TE Connectivity 163304-2 Krimpcontact MATE-N-LOK, female pin, max 15A, 17 AWG Max, 20AWG Min, min dwarsdoortsnede 0.5mm2, max 1.0mm2

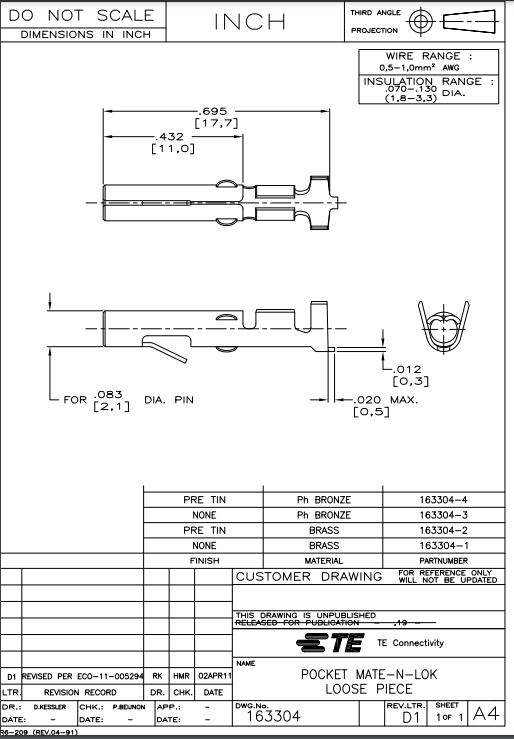

The TE customer drawing for the 163304 pocket MATE-N-LOK, the female pin: 0.5 to 1.0mm2 wire, for a 2.1mm diameter pin.

The corresponding pin seems to be this:

TE Connectivity 163558-2 Krimpcontact MATE-N-LOK, 15A, max 18AWG, min 22AWG,

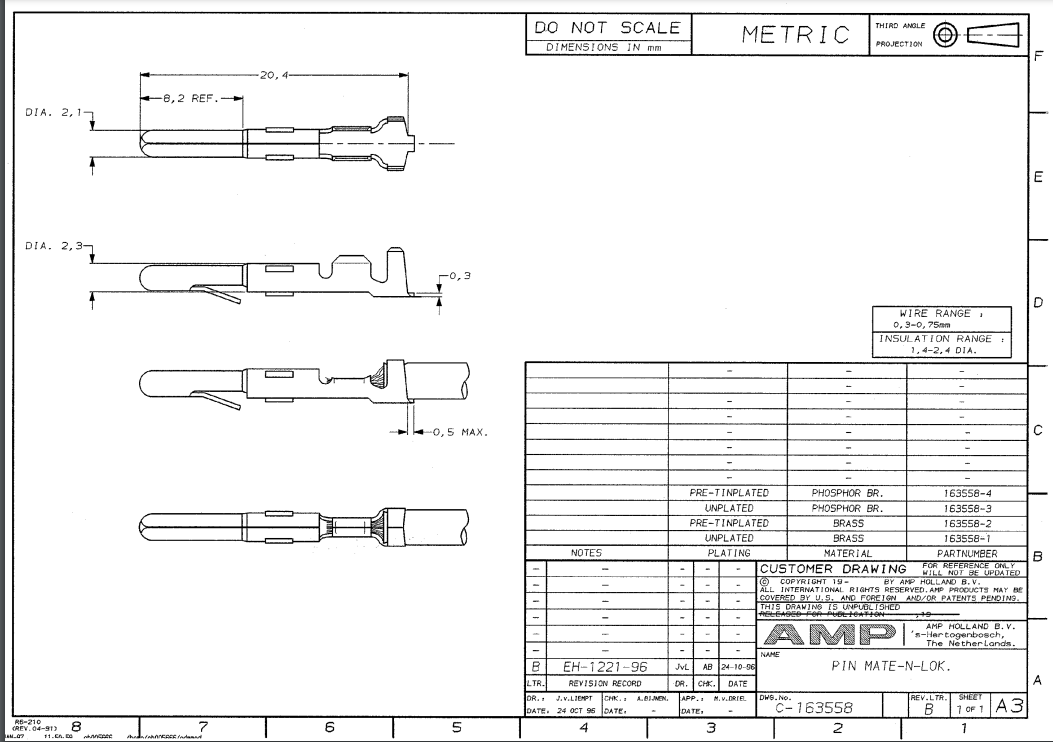

The matching 163558 male pin from AMP, in the metric drawing: 0.3 to 0.75mm2 wire and 1.4 to 2.4mm insulation.

A male housing that is not fully compatible but which has at least proper spacing seems to be this:

TE Connectivity 350434-1 Male behuizing-board Universal-MATE-N-LOK.
