The second HP 16717A board

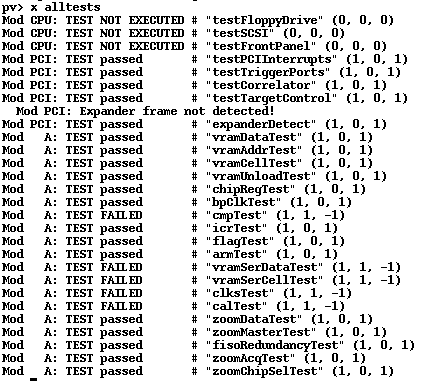

Let's hope we can repair this one too ;) The initial state reported the following errors:

This looks better than the first card, actually.

cmpTest

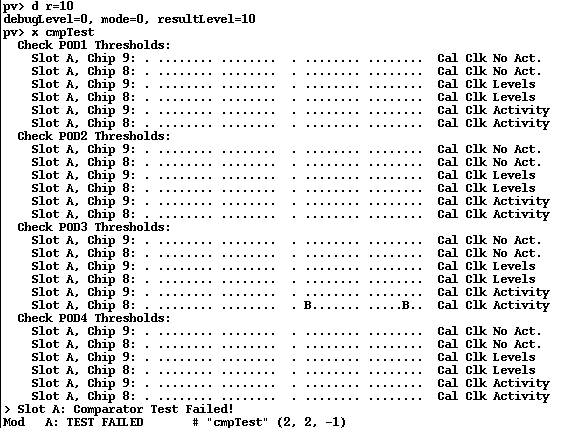

The cmpTest failure, with details:

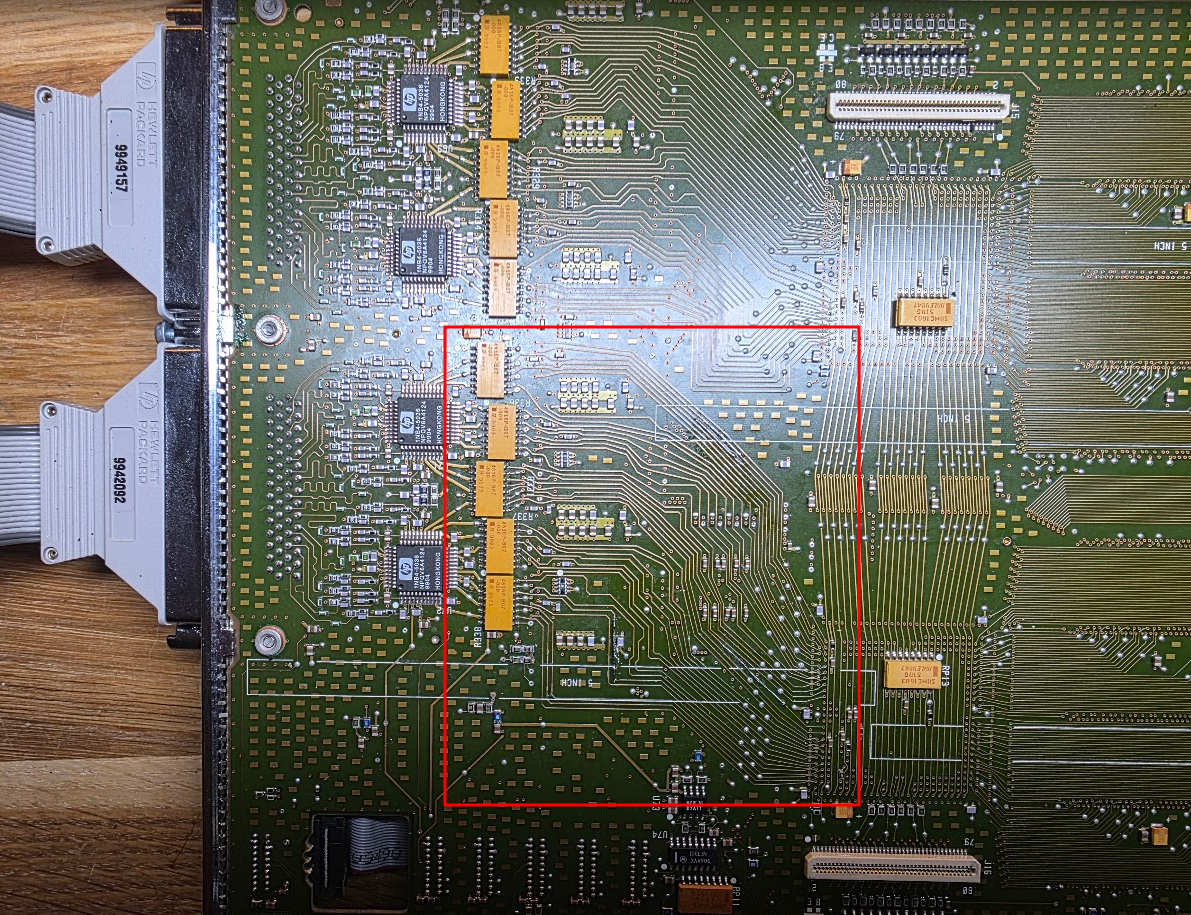

Slot Chip 8 (U22) two bad bits: 0 and 13. It was in this area:

This one was easy too: just two traces between the RAMs and U22. After that the board also passes all tests. Easy peasy ;)
