The M7093 FP11 Floating Point processor

This optional board implements floating point instructions. It is an impressive board with 16x AM2901 bit slice ALUs.

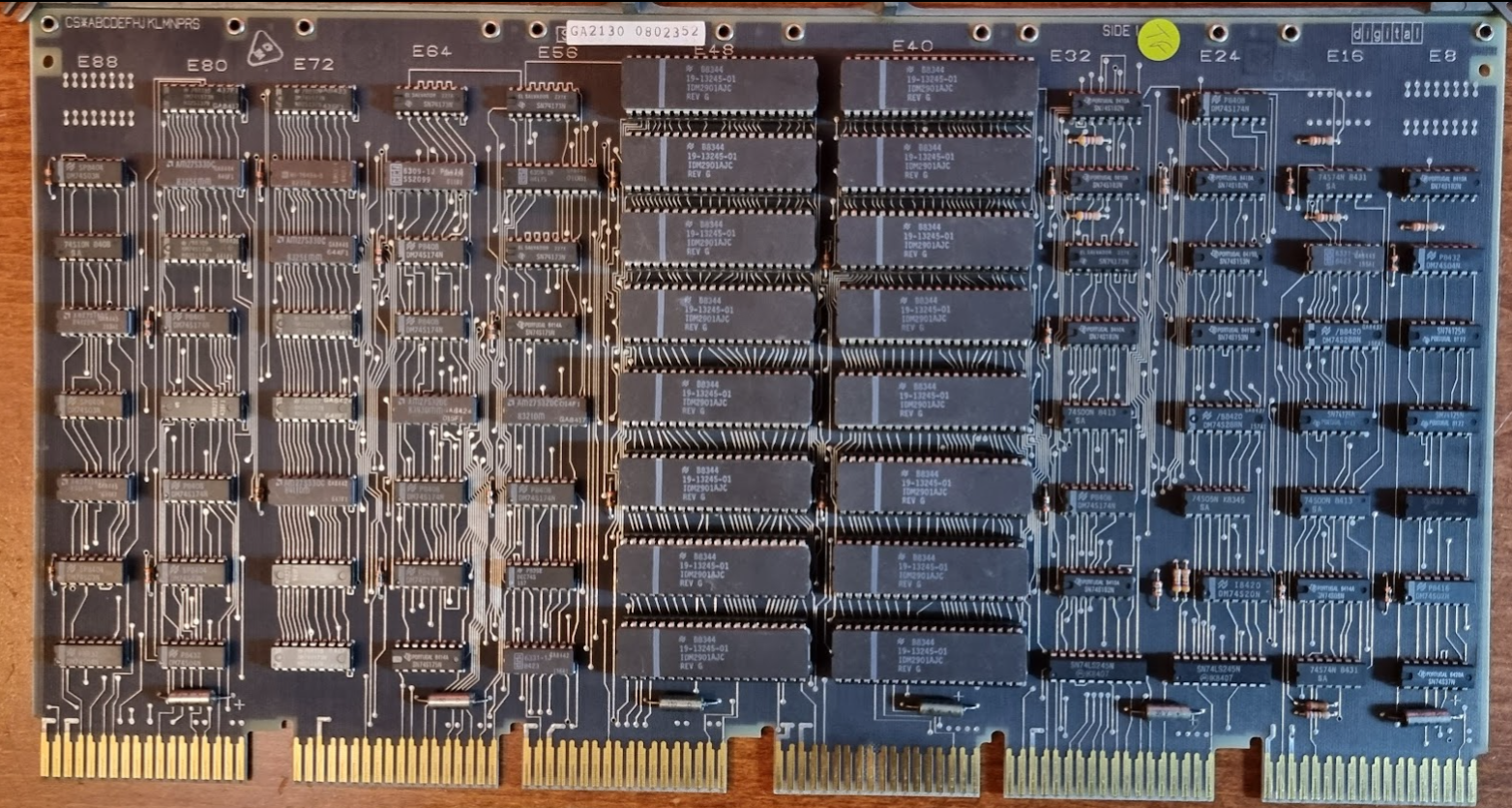

Board topside
