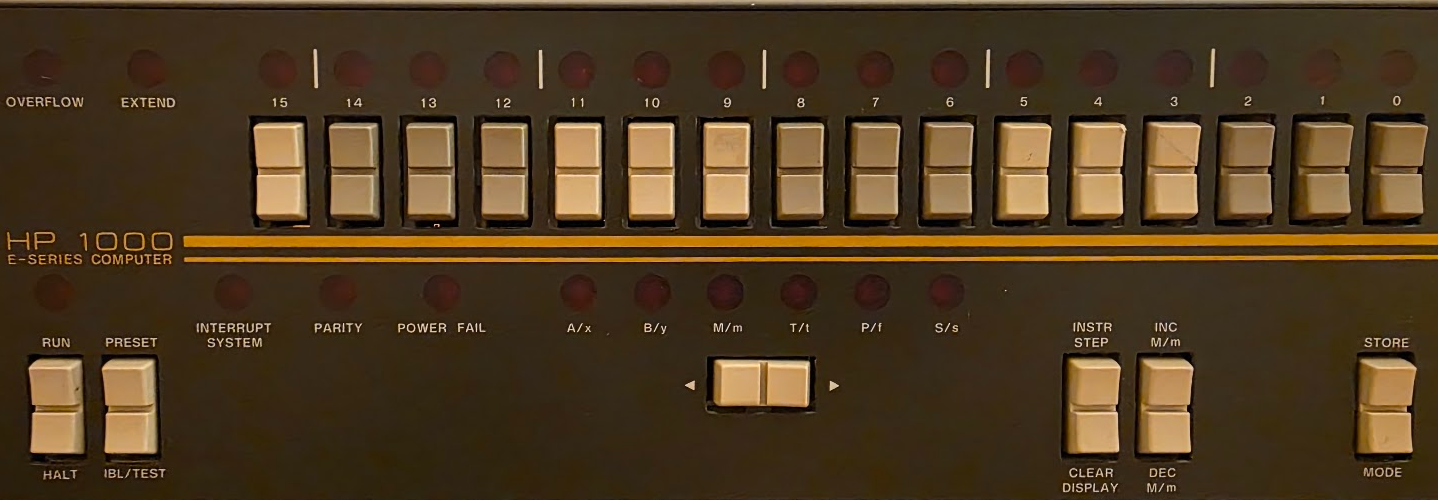

Installed boot PROMs

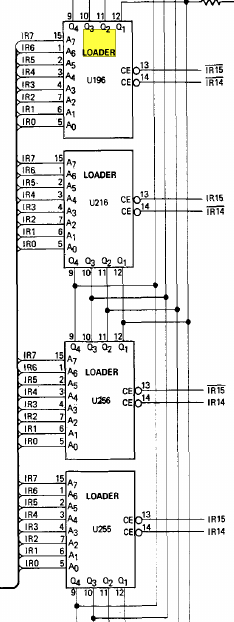

The IBL PROMs can be found by removing a few of the lower CPU cage cards. This then allows access to two of the boot PROMs in location U216 and U196.
The boot PROMs are N82S129 PROMs which are 256x4 bit model. These can actually be read with an TL 866II+.
U216
The U216 slot contained the following:
00000000 08 05 04 01 08 00 02 04 00 0c 04 09 08 00 02 01
00000010 00 03 01 04 03 07 0e 04 07 07 0e 04 01 0f 0e 0e
00000020 08 05 04 08 08 02 01 07 00 04 00 09 02 0f 0c 08
00000030 08 0f 0c 00 01 0f 0e 0e 00 04 0c 00 01 0f 0e 0e
00000040 06 07 0f 0e 08 05 08 06 08 0d 0c 02 06 07 0d 0d
00000050 08 05 08 02 06 07 0e 00 08 05 0c 02 08 05 08 02
00000060 08 07 0c 06 08 04 08 06 09 0f 0e 08 08 04 0c 08
00000070 02 0f 0d 09 08 04 00 09 00 01 0b 0f 00 01 0d 0f
00000080 0f 0d 09 04 00 01 02 00 00 01 06 08 00 00 00 00
00000090 00 02 00 00 00 01 0b 0f 00 01 04 00 08 01 0e 00
000000a0 08 04 02 0d 00 08 00 03 00 00 02 07 00 08 00 03
000000b0 00 01 00 0b 00 02 00 0d 00 00 00 00 08 0f 0c 08
000000c0 06 07 0e 09 08 05 08 08 08 05 0c 08 03 0f 0f 00
000000d0 00 04 0a 00 0a 0f 0e 0e 06 07 0d 0e 03 0f 0f 06
000000e0 08 05 08 08 00 04 01 01 02 0f 0f 06 08 04 0c 08
000000f0 02 0f 0f 0b 02 0f 0e 0f 00 00 00 08 0f 00 04 00
MD5 hashed to 13b3a1d34298c3b8f7f095f6a723baa0 which resolves to 12992-80004.bin, which is the 12992H loader ROM, used for disk models 7906H, 7920H, 7925H and 9895; all using the 12821A HP-IB (ICD) interface.
U196
The U196 slot contained:
00000000 00 00 00 00 00 00 00 00 00 00 0c 0c 00 06 00 04
00000010 07 07 0f 0d 06 0f 0f 0a 01 0f 0f 02 08 04 0c 09
00000020 02 0f 0c 07 06 0f 0f 0c 03 0f 0f 0d 02 0f 0c 06
00000030 06 0f 0f 0b 01 0f 0f 02 08 07 0c 08 08 04 08 09
00000040 02 0f 0e 0a 08 04 0c 08 02 0f 0c 0f 08 0f 04 08
00000050 00 0b 0d 07 00 0e 00 00 07 0f 0f 0d 08 04 08 09
00000060 02 0f 0e 0a 08 04 0c 08 02 0f 0d 07 08 0f 04 08
00000070 07 08 00 00 07 0f 0f 02 02 0f 0e 02 0f 0f 0f 02
00000080 04 00 00 01 03 0f 0f 02 08 04 0c 08 02 0f 0e 02
00000090 08 0f 04 08 03 0f 0f 0d 02 0f 0d 0f 05 08 00 00
000000a0 02 0f 0c 0f 08 04 00 09 08 05 04 09 00 03 0d 07
000000b0 00 04 01 00 08 04 03 0f 00 03 0d 07 00 02 0c 08
000000c0 08 04 00 00 02 0f 0c 0c 00 00 00 00 08 0d 08 09
000000d0 08 05 04 09 00 02 0d 03 00 02 0c 08 02 0f 0f 03
000000e0 08 07 0c 09 0a 0f 0f 02 00 03 04 01 00 03 01 03
000000f0 00 00 08 03 00 00 00 00 00 00 00 00 00 00 00 00
which hashes to 2e1826652c7a37b59e66f20b4b262b74. There is no direct match with the known boot PROMs.
With a lot of help from Claude this PROM was identified as the HP 12992D loader ROM: the 7970B/7970E 9‑track magnetic‑tape absolute binary loader (HP part 12992‑80006) - with a small change.
IDENTITY: HP 12992D -- 7970B/7970E 9-track MAGNETIC TAPE absolute binary loader
(HP part 12992-80006). Interface: 13181A (7970B) / 13183A (7970E).
Interface select codes used: 10B = data channel ("DC"),
11B = command channel ("CC").
Words 07703-07777 are BYTE-IDENTICAL to the published 12992D listing.
Words 07700-07702 DIFFER (see *** below): the switch-register "file-forward
select" entry of 12992D is absent here (first 10 PROM nibbles read as zero).
addr octal mnemonic 12992D label / comment
----- ------ -------------- ---------------------------------------------
*** ENTRY DIFFERS FROM PUBLISHED 12992D ***
07700 000000 NOP (12992D: 106501 LIB 1 = read switch register)
07701 000000 NOP (12992D: 006011 SLB,RSS = file-forward requested?)
07702 000314 SLA (12992D: 027714 JMP NRD = no, just read a file)
*** body below matches 12992D exactly ***
07703 003004 CMA,INA make file-forward request negative for counter
07704 073775 STA WCT save file counter (WCT=07775)
07705 067772 LDB SLORW select unit 0 and rewind (SLORW=07772)
07706 017762 JSB CMD FFL: output command to drive (CMD=07762)
07707 102311 SFS CC wait for command completion (CC=11B)
07710 027707 JMP *-1
07711 067774 LDB FFC get file-forward command (FFC=07774)
07712 037775 ISZ WCT bump file counter
07713 027706 JMP FFL do file forward
07714 067773 LDB RDCMD NRD: get read command (RDCMD=07773)
07715 017762 JSB CMD issue it
07716 103710 STC DC,C start data channel (DC=10B)
07717 102211 SFC CC check for status
07720 027752 JMP STAT (STAT=07752)
07721 102310 SFS DC any data?
07722 027717 JMP *-3
07723 107510 LIB DC,C get record count (lower byte)
07724 005727 BLF,BLF
07725 007000 CMB
07726 077775 STB WCT save input count
07727 102211 SFC CC check for status
07730 027752 JMP STAT
07731 102310 SFS DC wait to read next word
07732 027727 JMP *-3
07733 107510 LIB DC,C get load address
07734 074000 STB 0 start checksum
07735 077762 STB CMD and address pointer (CMD=07762)
07736 027742 JMP *+4
07737 177762 STB CMD,I NWD: put word in memory
07740 040001 ADA 1 add it to checksum
07741 037762 ISZ CMD move up address
07742 102310 SFS DC wait for next word
07743 027742 JMP *-1
07744 107510 LIB DC,C get data to store in memory
07745 037775 ISZ WCT finished with data?
07746 027737 JMP NWD no, read next word
07747 054000 CPB 0 is checksum OK?
07750 027717 JMP NRD+3 yes - wait for cmd channel status (NRD+3=07717)
07751 102011 HLT 11B no -- error halt
07752 102511 LIA CC STAT: get status
07753 001727 ALF,ALF position EOF bit
07754 002020 SSA
07755 102077 HLT 77B end-of-file halt
07756 001727 ALF,ALF
07757 001310 RAR,SLA
07760 102000 HLT 0
07761 027714 JMP NRD read next record
-- constants / subroutine ----------------------------------------------
07762 000000 CMD NOP (command-output subroutine entry / address temp)
07763 106611 OTB CC output command
07764 102511 LIA CC check if rejected
07765 001323 RAR,RAR
07766 001310 RAR,SLA
07767 027763 JMP *-4 yes, try again
07770 103711 STC CC,C no, start command
07771 127762 JMP CMD,I return
07772 001501 =OCT 1501 SLORW: MT select 0 / rewind command
07773 001423 =OCT 1423 RDCMD: MT read-a-record command
07774 000203 =OCT 0203 FFC: MT file-forward command
07775 000000 =OCT 0 WCT: input word/file count (variable)
07776 000000 =OCT 0
07777 000000 =OCT 0
