HP 1600A Logic Analyzer

HP 1600A Logic Analyzer

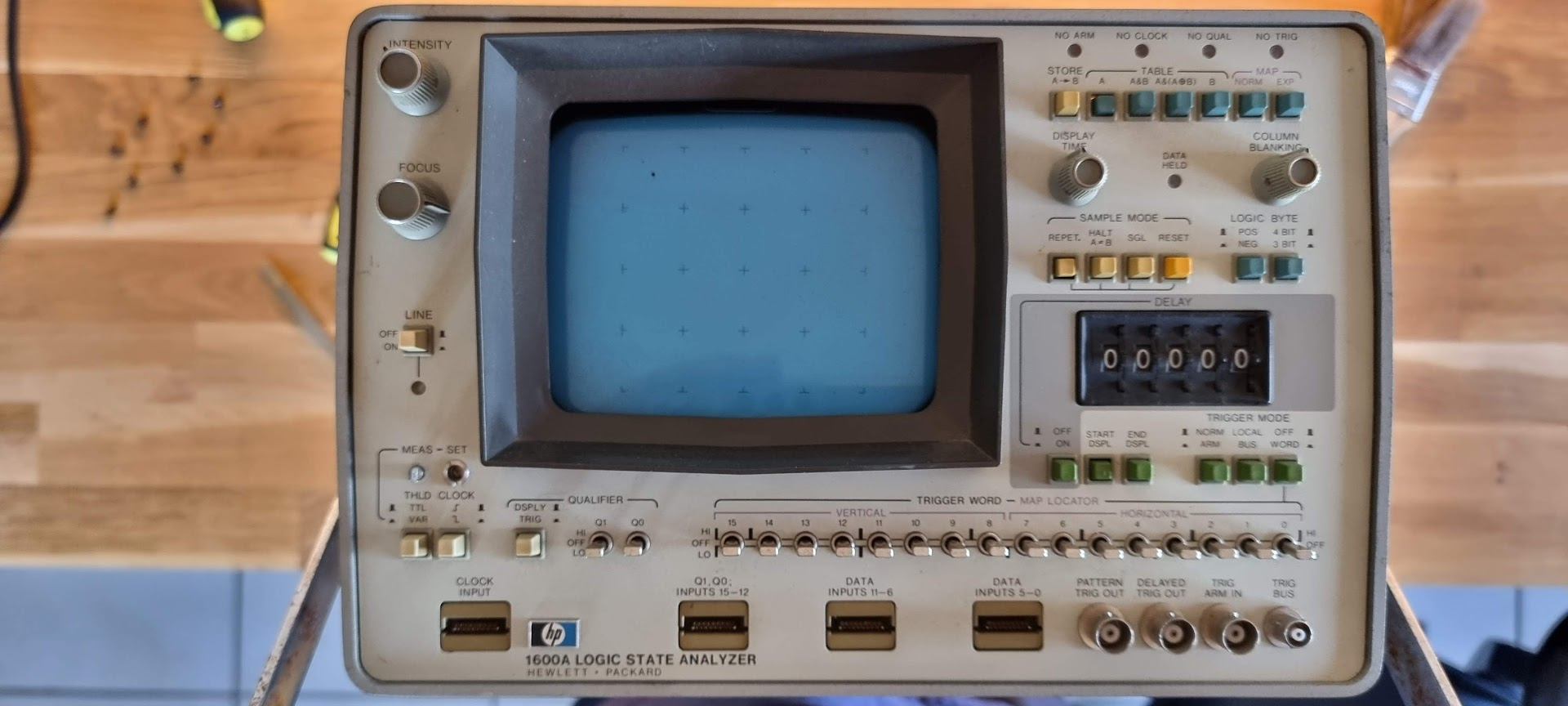

Gotten from the inheritance of Domaine l’Espitalet. This device is one of the first logical analyzers from HP and a companion of the HP 1607A I already have. The device seemed in good physical shape, just a bit dirty. But sadly enough it did not work. A quick measure of the +5V showed that no power was present there.

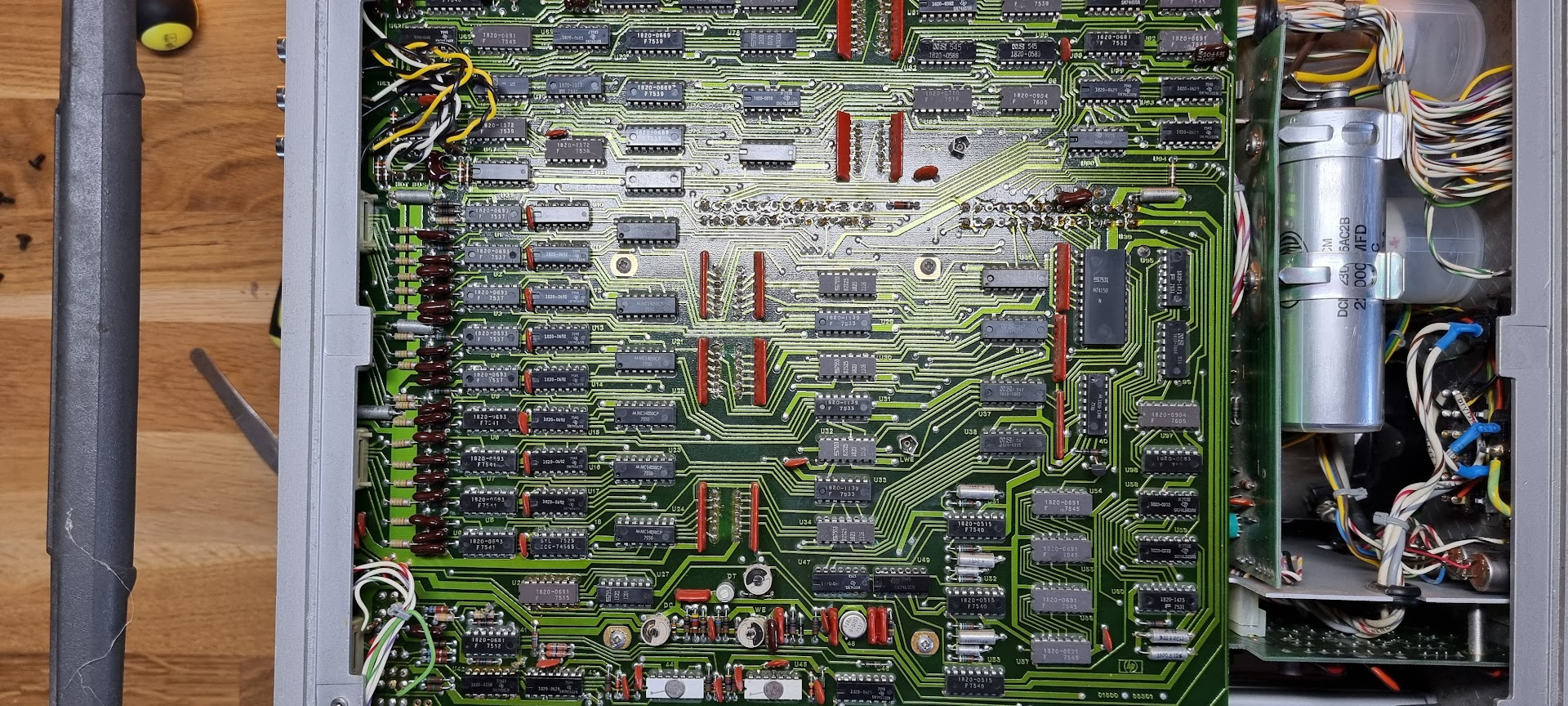

The insides looked quite clean too:

Repairing the device

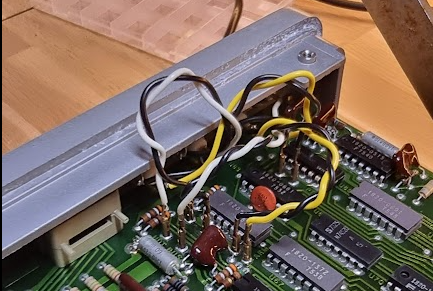

First step is to get access to the power supply. First remove the A1 board, taking care of the connectors at the top:

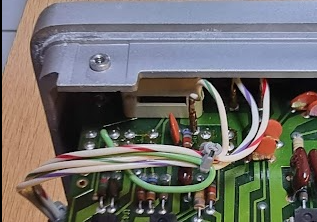

For the top right ones the PCB has markings that echo the plugs at front.

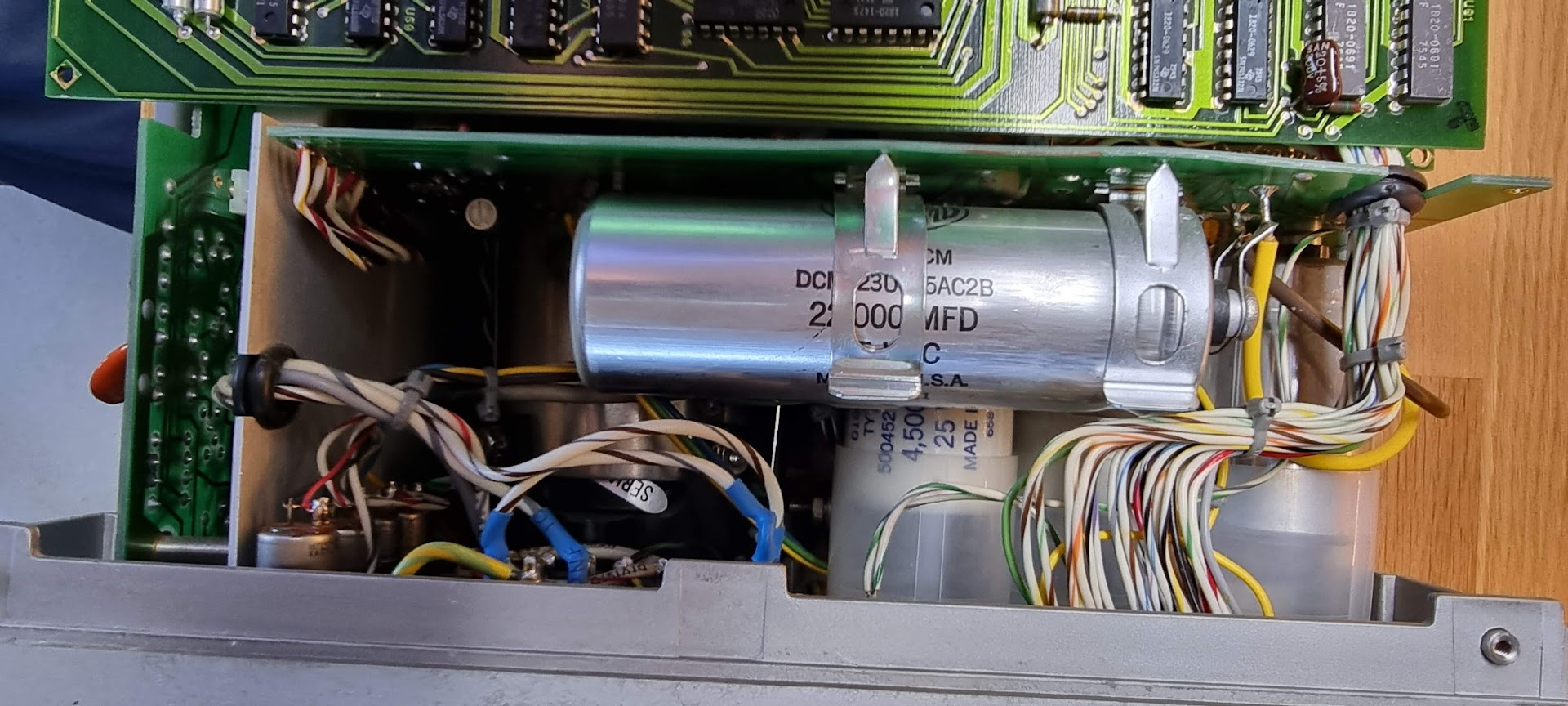

Power supply

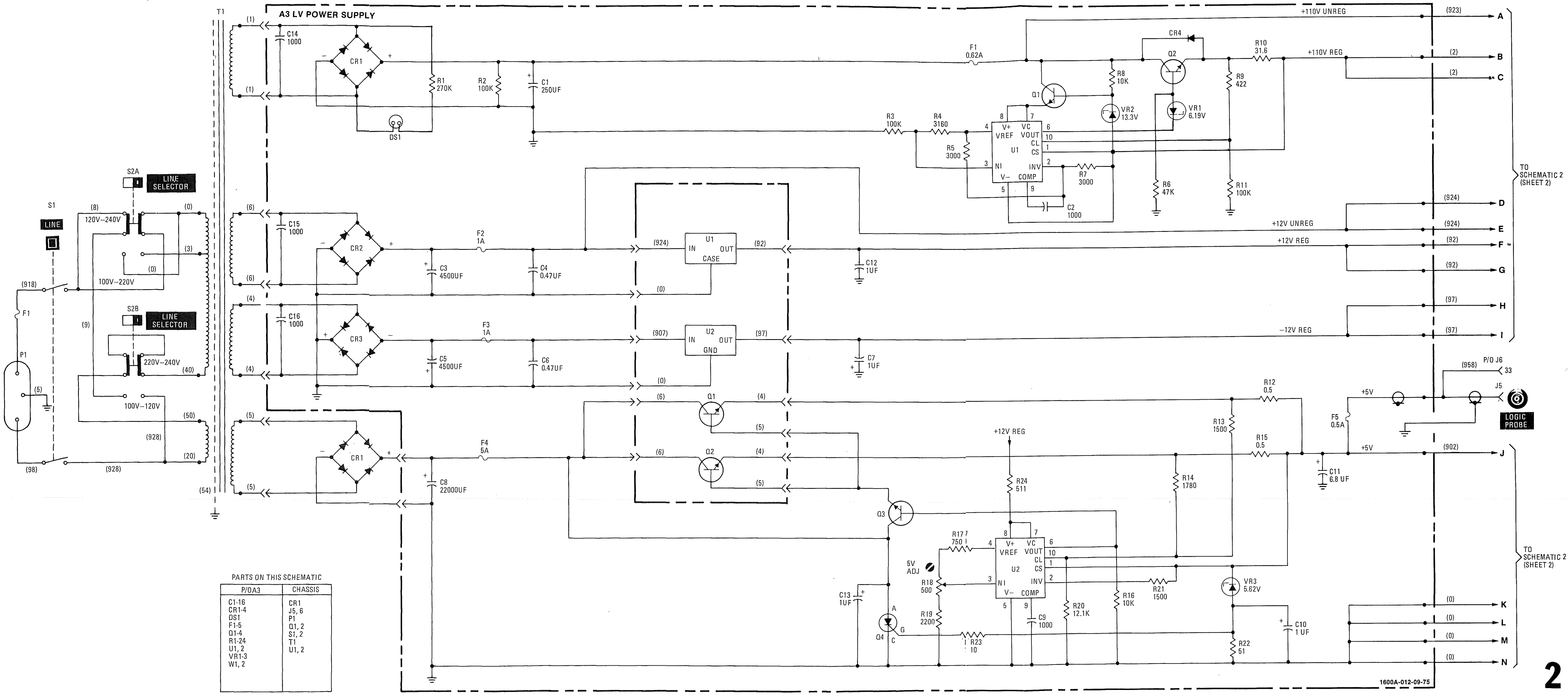

The schematic was stitched together from the service manual:

Disconnecting everything showed that +12, -12, +5 were all fine, until I put load on the +5V line. Even 200mA dropped it to 200mV.

Part numbers in that power supply:

Q1, Q2M552 4-433Hfe=43, Hfe=29
Q32N3053
U1 case1826-0147 7812
U2 case1826-0221 7912
U1, U2 brduA723Voltage regulator

The current sensing resistors seemed fine at 0.5ohm.
